ADF 3/4 inch carrier bearing spacer set with hardware for a lifted Subaru Outback

ADF 3/4" Carrier Bearing Spacer

$ 69.00 CAD
In Stock
Ready to order
Backorder
Out of Stock

Subaru Outback

1995
1996
1997
1998
1999
2000
2001
2002
2003
2004
2005
2006
2007
2008
2009
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
2025
2026

Outback lift kits that space the rear subframe down leave the two-piece driveshaft with a kink at the center bearing, and on gravel or pavement that shows up as a hum or vibration through the floor. This ADF 3/4" Carrier Bearing Spacer lowers the center support bearing so both halves of the shaft line up again. The set is two 3/4" aluminum spacers with zinc-coated class 10.9 bolts and washers, sized for 1995-2026 Outback models on subframe or multi-link spacer lifts. Anyone already running a JXB center bearing carrier should take the kit option with JXB's mounting sleeves, since that carrier needs them to sit under a spacer. It is a cheap fix worth doing before a road trip across the Prairies. Shipped Canada-wide by Flat 4 Offroad from Calgary, duties included.

Details

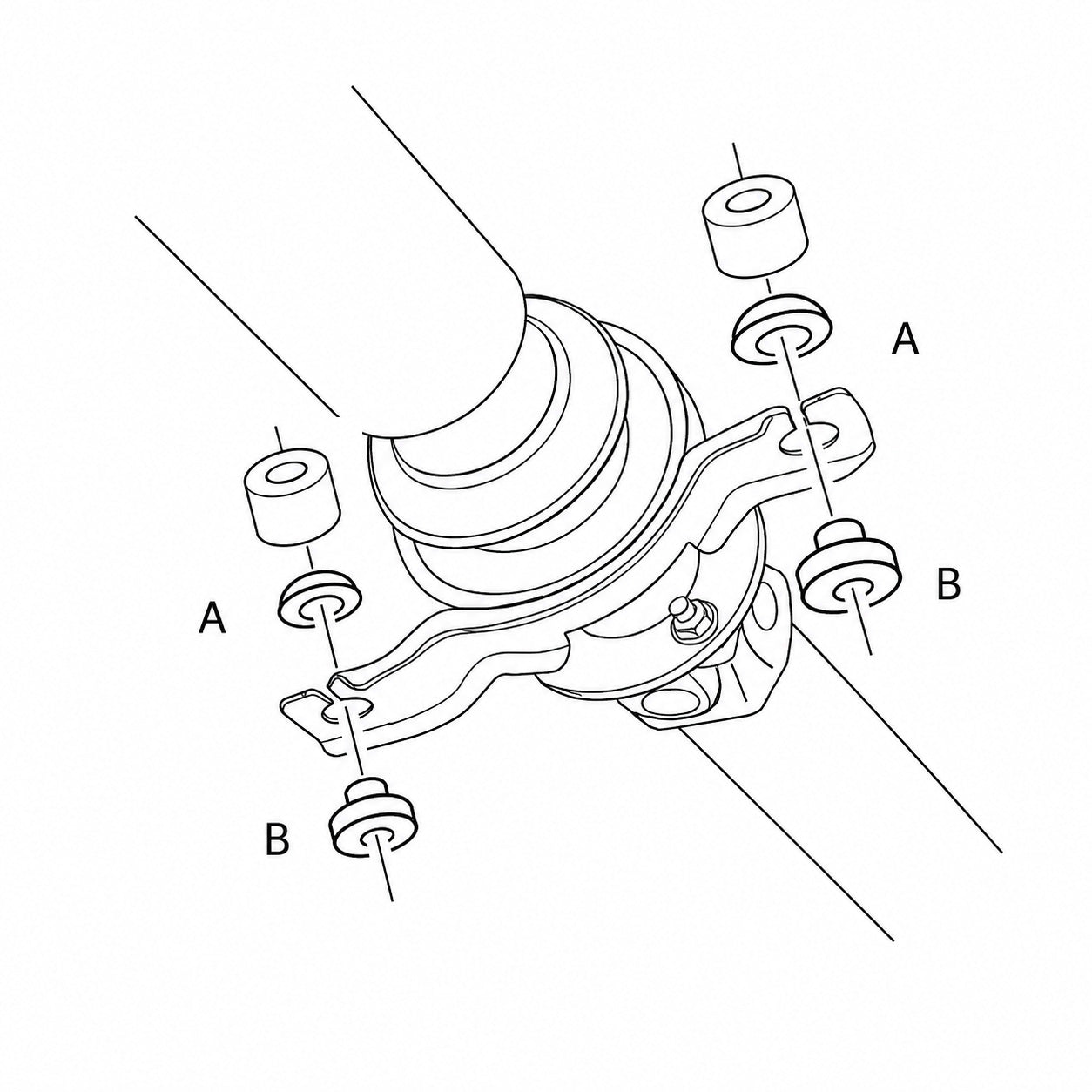

  • Two 3/4" aluminum spacers that lower the driveshaft center support bearing
  • Includes zinc-coated class 10.9 bolts and washers
  • For lifted Subarus using a rear subframe or multi-link spacer lift, ADF or other brands
  • Helps correct driveshaft angle and reduce driveline vibration or wobble after a lift
  • Bolt-on install, no cutting or drilling
  • Spacer + JXB Sleeve Kit option adds JXB HDW04A0 sleeves and washers so a JXB carrier mounts under the spacer
  • For remaining vibration, ADF recommends pairing it with their Anti Wobble Transmission Insert
  • Made in the USA by Anderson Design and Fabrication
